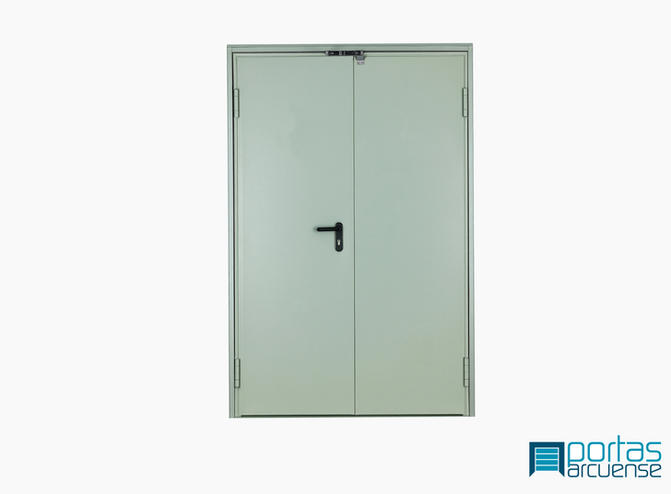

FIRESTOP DOORS
The best solution for high-traffic areas.

With a robust appearance, excellent finishes, variety of accessories and specially designed for
high-flow spaces such as commercial spaces, public buildings, industry ... the fire door offers
you greater security and protection.

ADVANTAGES

Non-standard dimensions in order to adapt the door to any need.
Thermal insulation 1.2 (W/m2k).
Torsional rigidity of the door leaf higher than that of traditional assembling method.
Galvanized sheet and paint with a high corrosion resistance and durability.
Easy installation.
Excellent serial hardware.
Great variety of hardware.
Tested for up to 200.000 opening and closing cycles.
Certified as a whole.

CERTIFICADOS

Resistência ao fogo 60  ou 90 minutos EN 164-1:2000

Certificado de durabilidade C5 EN 14600:2005

Certificado ISO 9001:2008

DOOR LEAF

Galvanized steel sheets 0.7/0.9 mm thick.

High density rock wool insulation, 145/180 kg/m3.

Galvanised steel stiffeners.

Hexagonal 14x36 mm zinc plated anti-leverage bolt.

Door thickness: 51 mm, approx.

Approx. weight: 25/29 kg/m2.



DOOR FRAME

Reduced thermal conductivity galvanized steel, 1.5 mm thick.
230x1.5 mm cold-laminated steel plate fastening anchors, especially designed to be fitted in any kind of wall.
50x2.5 mm steel door threshold.



FINISHES

Sheet painted with thermosetting epoxy powder.
100 micron coat of paint on the leaf and 120 on the frame.
Standard color RAL 9010 White.
Color ral 7038 Grey without additional cost (by order)

ACCESSORIES

3 mm thick steel hinges, welded to the frame and fixed onto the leaf with M6x16 zinc plated screws. The lower hinge is self-closing.
15x2.5 mm graphite intumescent joint. It dilates 25 times its size at temperatures greater than 150ºC.
Reversible inlay fire resistant lock protected by two MO Stucal boards.
Sintered steel latch.
40x40 brass cylinder lock with 3 keys.
Handle
    Anti-snag fire resistant handle.
    CSteel core covered by fusion.
     Metal shields covered with nylon. Bolts and nuts.

SCHEME
